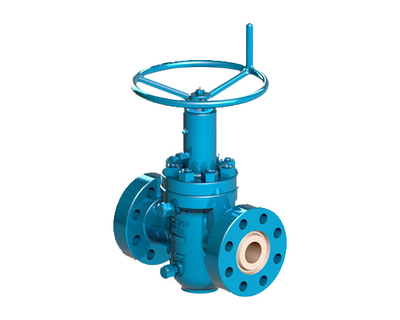

API 6A – Gate Valves Model CX

Technical Specifications

Size : 2-1/16″ through 7.1/16″

Pressure Class : 2000 through 5000 PSI

Temperature Rating :  L(-50⁰F) through Y (650⁰F)

Qualifies to Standrad

• API 6A
• CE / PED 97/23/EC
• It is applicable to all valves 6A  and 6D
• MR0175 / NACE / ISO 15156

Operations

• Pneumatic actuators

Applications

• Welhead Equipments.
• Chrimas Tree.
• Manifold and safety shutdown applications.

Salient features

• Chevron style stem packing is replaceable and can be re-energised by injection between the packing stacks.
• Expanding Gate – Field Replaceable.
• The full through conduit bore provides for smooth flow with minimal turbulence.
• Prevents fluid hammer and hence Low pressure loss across the valve.
• Long service life and leak tightness.
