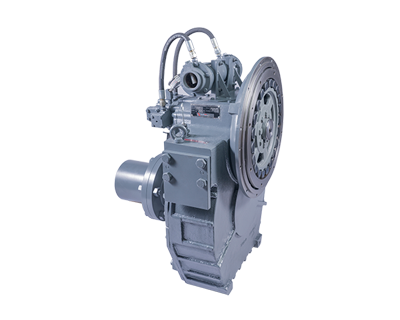

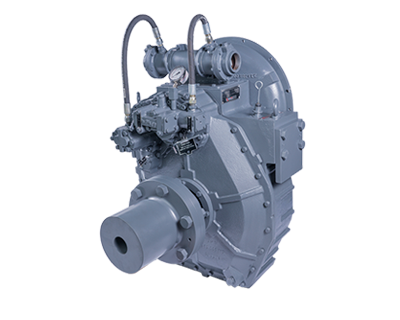

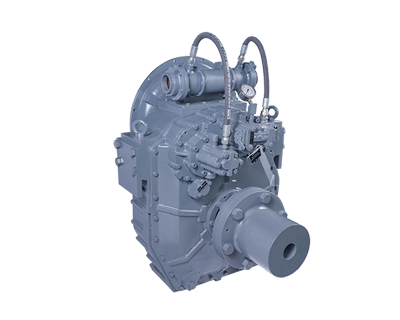

HYDRAULIC GEARBOX HG 25

Specification HG 25
Power Range in HP 300 to 500
Continues Torque in Kg-m 180
Maximum Speed in RPM 2000
Reduction Ratio 4:1, 4.47:1, 5:1, 5.67:1
Weight in Kgs (Approx.) 400
Engine Mountings SAE 0, SAE 1


Salient Features

  1. Smooth Actuation & High Reliability
  2. Equal power transmission in both Astern & Ahead direction
  3. Suitable for twin screw application
  4. Smooth and reliable hydraulic shifting with control lever
  5. Emergency come home facility
  6. Low maintenance


Applications

  1. Fishing
    1. Trawling
    2. Purse Seining
    3. Gill Netting
    4. Long Lining
    5. Hook Lining
  2. Ferry Boats
  3. Passenger Boats
  4. RORO Vessels
  5. Tug Boats
